Digital Micrometer IP65, Inch/ 10-11", with Output
Stock Code: MIT293-356-30
£546.55 (exc VAT) Each Includes your 15% Disc
£655.86 (inc VAT)
Next Day Delivery

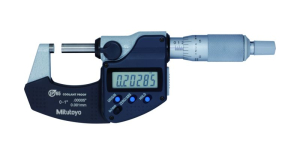

Mitutoyo 293-356-30 This Inch/Metric micrometer offers outstanding accuracy, with and without data input, and is highly robust. The Digimatic Micrometer IP65 Metric offers the following benefits: Outstanding accuracy with just ±1µm instrumental error (75mm or less measuring range models).
| Range: |
10 - 11 inch
|
| Accuracy: |
±4 µm/0.0002"
|
| Data output: |
Yes
|
| Mass: |
1340 g
|
| Measuring force: |
5 - 10 N
|
| Digital step: |
0.00005"/0,001 mm (up to 4") /0.0001"/0,001 mm(over 4")
|
| Flatness: |
0,3 µm
|
| Parallelism: |
1 µm for models up to 2" 2 µm for models up to 4" 3 µm for models up to 7" 4 µm for models up to 11" 5 µm for models over 12"
|
| Measuring surfaces: |
Carbide tipped, micro-lap finish
|
| Measuring spindle: |
With spindle lock, ø 6,35 mm, spindle pitch 0,5 mm
|
| Battery life: |
approx. 1.2 years
|
| Delivered: |
Including box, key, 1 battery, setting standard (from 1" upward)certificate of inspection (0-2")
|
| ORIGIN (until 100 mm): |
Yes
|
| ZERO/ABS: |
Yes
|
| 2 x PRESET (over 100 mm): |
Yes
|
| Auto Power OFF after 20 min. non use: |
Yes
|
| Function lock (over 100 mm): |
Yes
|
| HOLD: |
Yes
|
| Inch-Metric: |
Inch/Metric
|
| Functions: |
With ratchet stop
|
