Digital Micrometer 0-25mm, w/o Data Output

Digital Micrometer 0-25mm, w/o Data Output

Stock Code: MIT293-821-30
Next Day Delivery
£147.08 (exc VAT) EACH
£176.50 (inc VAT)
Includes your -15% Disc
Quantity: - +

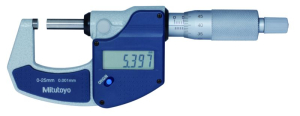

Mitutoyo 293-821-30 This standard model Digimatic Micrometer is an affordable device that offers the following benefits: Cost-effective with simplified functionality for standard applications. Without data output. It is available with a ratchet stop or friction thimble for a constant measuring force.

Range:
0 - 25 mm
Accuracy:
±2 µm
Mass:
275 g
Measuring force:
5 - 10 N
Digital step:
0,001 mm / 0,001 mm/0.00005"
Scale:
thimble and sleeve satin chrome finish, Ø 18 mm
Flatness:
0,3 μm/0.000012”
Parallelism:
2 μm/0.00008”
Measuring surfaces:
carbide-tipped, precision ground, micro-lap finish
Measuring spindle:
ø 6,35 mm, spindle pitch 0,5 mm
Battery life:
approx. 2,4 years (approx. 8700 hours)
Delivered:
Including box, key, 1 battery, with factory certificate
ORIGIN:
Yes
Auto Power OFF after 20 min. non use:
Yes
Digital/Analog:
Digital
Inch-Metric:
Metric
Functions:
With ratchet stop
