Digital Indicator Bore Gauge I Inch/Metric, 0,5", 0,00005", F
Stock Code: MIT543-311B
£408.85 (exc VAT) Each Includes your 15% Disc
£490.62 (inc VAT)
Next Day Delivery

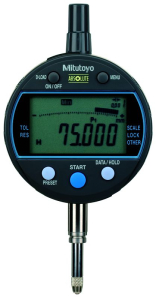

Mitutoyo 543-311B This indicator is designed for inside diameter measurement applications on bore gauges, It offers the following benefits: Minimum value holding function that allows you to easily detect a hole diameter Analogue bar graph in the display (12 different scales switchable), The analogue bar graph enhances usability by adding a dial gauge “feel” to digital measurement, GO/±NG tolerance judgement function, A fast measurement frequency mode(detection cycle 20ms or 50times/s) is selectable to measure in the peak detection mode more reliably, Easy indicator setup via a setup menu, A USB interface box can be used to set up the indicator from PC via dedicated software
| Range: |
12.7 mm
|
| Digital step: |
0,00005/0,0001/0,0005 // 0,001/0,01 mm
|
| Measuring force: |
≤ 1,5 N
|
| Mass: |
170 g
|
| Accuracy: |
Refer to the list of specifications (excluding quantizing error)
|
| Stem Ø: |
8 mm
|
| Max. response speed: |
Unlimited
|
| Measurement frequency: |
Standard mode: 10 times/s " Fast" mode: 50 times/s*
|
| Contact point: |
Carbide ball, threadM 2,5 x 0,45 mm
|
| Alarm: |
Low voltage, composition error, overflow error, tolerance limit setting error
|
| Scale: |
Capacitance ABSOLUTE linear encoder
|
| Power supply: |
1 Battery CR 2032
|
| Battery life: |
Standard mode: approx. 1 year "Fast" mode: approx. 4.5 month
|
| Display: |
LCD character height:8 mm Rotatable 330°
|
| PRESET (x3): |
Yes
|
| GO/±NG judgement: |
Yes
|
| Digimatic data output: |
Yes
|
| ON/OFF: |
Yes
|
| DATA/HOLD: |
Yes
|
| Analogue measuring range switchable: |
Yes
|
| MIN Value Hold: |
Yes
|
| Lock function: |
Yes
|
| Fast measurement mode: |
yes
|
| Inch-Metric: |
Metric/Inch
|
