Digital Indicator Calculation Inch/Metric, 0,5", 0,00005", F

Stock Code: MIT543-341B
£421.60 (exc VAT) Each Includes your 15% Disc

£505.92 (inc VAT)

Next Day Delivery
Quantity:
-
+

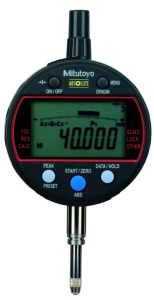

Mitutoyo 543-341B This indicator allows you to use a calculation function for the measured value
Ax+B+Cx-1. The integrated calculation formula is useful in a variety of applications (e.g. roll diameter measurement), Coefficients A,B and C are freely definable. X = displacement of the plunger, Analogue bar graph in the display (14 different scales switchable), GO/±NG tolerance judgement function, MAX/MIN/RANGE function to measure peak values, A fast measurement frequency mode(detection cycle 20ms or 50times/s) is selectable to measure in the peak detection mode (MAX/MIN/RANGE) more reliably, Easy indicator setup via a setup menu, A USB interface box can be used to set up the indicator from PC via dedicated software

Range:
12.7 mm
Range:
0.5 inch
Mass:
170 g
Accuracy:
Refer to the list of specifications (excluding quantizing error)
Digital step:
0,00005"/0,001 mm
Scale:
Capacitance type, ABSOLUTE linear encoder
Max. response speed:
Unlimited
Stem Ø:
8 mm
Measurement frequency:
Standard mode: 10 times/s "Fast" mode: 50 times/s
Contact point:
Carbide ball, thread M 2.5 x 0.45 mm
Alarm:
Low voltage, ABS composition error, overflow error, tolerance limit setting error
Power supply:
1 battery CR2032
Battery life:
Standard mode: approx. 1 year "Fast" mode: approx. 4,5 month
Display:
LCD, character height 8 mm Rotatable 330°
PRESET (x3):
Yes
ZERO/ABS:
Yes
GO/±NG judgement:
Yes
Digimatic data output:
Yes
ON/OFF:
Yes
DATA/HOLD:
Yes
Analogue measuring range switchable:
Yes
MAX/MIN/RANGE:
Yes
Lock function:
Yes
Fast measurement mode:
yes
Calculation function:
Yes
Selectable resolution:
Yes
Inch-Metric:
Metric/Inch
