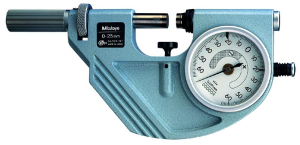

Dial Snap Meter 3-4"
Stock Code: MIT523-134
£670.65 (exc VAT) Each Includes your 15% Disc
£804.78 (inc VAT)
Next Day Delivery
Mitutoyo 523-134 This Snap Gauge designed to mount an indicator to suit the measurement application, and offers the following benefits:,It‘s ideal for rapidly inspecting workpieces, especially cylindrical, in batch or mass production situations, when you need an indication of where a measurement falls within the tolerance band. You can set it with external length standards such as block gauges. Easy-to-operate retracting button.
| Range: |
3 - 4 inch
|
| Anvil retracting stroke: |
2 mm
|
| Indicating range: |
±0.0023"
|
| Mass: |
1080 g
|
| Measuring force: |
5 - 10 N
|
| Graduation dial comparator: |
0,001 mm
|
| Flatness: |
0,3 μm
|
| Parallelism: |
0,6 μm for models up to 50 mm 1 μm for models over 50 mm
|
| Measuring surfaces: |
Carbide tipped, micro-lap finish ø 10.8 mm
|
| Delivered: |
Including box, workpiece rest
|
| Digital/Analog: |
Analog
|
| Inch-Metric: |
Inch
|
No detailed specifications are available for this product.
There are no downloads for this product.
There are no reviews for this product yet. Be the first to add one!
