ABS Digital Depth Gauge Inch/Metric, 0-8", 0,0005", 2,
Stock Code: MIT547-217S
£343.40 (exc VAT) Each Includes your 15% Disc
£412.08 (inc VAT)
Next Day Delivery

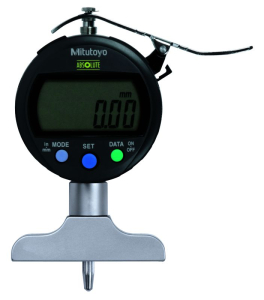

Mitutoyo 547-217S This ABSOLUTE Digimatic Indicator Depth Gauge offers you the following benefits: It is equipped with the ABSOLUTE Digimatic Indicator ID-C. It has a hardened, precision ground and micro-lapped reference face on its base.
| Range: |
0 - 8 inch
|
| Base flatness: |
0.0002"
|
| Accuracy: |
± 0.001"
|
| Base size: |
2.5 x 0.63" mm
|
| Mass: |
290
|
| Accuracy: |
Refer to the list of specifications(excluding quantizing error)
|
| Stroke: |
12,7 mm
|
| Contact point: |
Carbide ball
|
| Alarm: |
Low voltage, counting value composition error, overflow error, tolerance limit setting error
|
| Scale: |
Capacitance type ABSOLUTE linear encoder
|
| Power supply: |
1 battery SR-44
|
| Battery life: |
approx. 7000 hours
|
| Measuring force: |
≤ 1,5 N
|
| Delivered: |
Including Box and extensions 10, 20, 30 (2 pcs.), 100 mm
|
| Max. response speed: |
Unlimited
|
| ZERO/ABS: |
Yes
|
| GO/±NG judgement: |
Yes
|
| Digimatic data output: |
Yes
|
| DATA/HOLD: |
Yes
|
| Lock function: |
Yes
|
| PRESET: |
Yes
|
| Counting direction switchable: |
Yes
|
| Calculation function: |
Yes
|
| Inch-Metric: |
Inch/Metric
|
| Functions: |
With indicator No. 543-390BD
|
