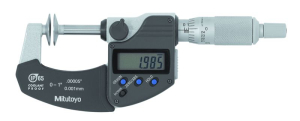

Digital Disc Micrometer IP65 Inch/Metric, 0-1", Disk=20mm

Stock Code: MIT323-350-30
£480.25 (exc VAT) Each Includes your 15% Disc

£576.30 (inc VAT)

Next Day Delivery
Quantity:
-
+

Mitutoyo 323-350-30 This Digimatic Disc Micrometer enables you to measure hard-to-reach features, offering you the following benefits: Measuring the root tangent length of spur and helical gears. You can measure recessed features that are difficult to reach with a standard micrometer.

Range:
0 - 1 inch
Accuracy:
±4 µm/0.0002"
Mass:
290 g
Measuring force:
3 - 8 N
Digital step:
0,001 mm
Scale:
Thimble and sleeve satin chrome finish, ø18 mm
Flatness:
1 µm
Parallelism:
4 µm/0.00016" for models up to 50 mm/2" (4+L/50) µm for models up to 100 mm L = max. range (mm) 0.00024" for models up to 4"
Measuring spindle:
ø6,35 mm, spindle pitch 0,5 mm, with spindle lock
Measurable module:
0.5-6
Battery life:
approx. 2.4 years
Delivered:
Including box, setting standard (from 25 mm upward), key, 1 battery
ORIGIN:
Yes
ZERO/ABS:
Yes
Auto Power OFF after 20 min. non use:
Yes
Function lock:
Yes
Data output:
Yes
HOLD:
Yes
Digital/Analog:
Digital
Spindle pitch:
Ø 6.35 mm, spindle pitch 0.5 mm, with spindle lock
Inch-Metric:
Inch/Metric
