Digital Depth Micrometer Inch/Metric, 0-12", incl. 12 R
Stock Code: MIT329-351-30
£800.70 (exc VAT) Each Includes your 15% Disc
£960.84 (inc VAT)
Next Day Delivery

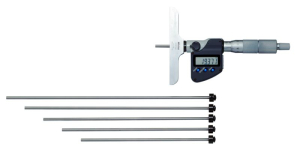

Mitutoyo 329-351-30 This interchangeable rod type micrometer can be used for wide range measurements. It offers you the following benefits: ø4mm interchangeable rods, with lapped measuring surfaces, enable you to make wide-range measurement The ratchet stop provides constant measuring force. Measuring rod lock.
| Range: |
0 - 12 inch
|
| Base (W x T): |
101,6 x 16 mm/4 x 0.63"
|
| Number of rods: |
12
|
| Mass: |
790 g
|
| Measuring force: |
5 - 10 N
|
| Scale: |
Thimble and sleeve satin chrome finish, ø18 mm
|
| Measuring span: |
25 mm
|
| Spindle pitch: |
0,5 mm with spindle lock
|
| Zero point errors of rods: |
±4 µm (0-150 mm)±6 µm (0-300 mm)
|
| Micrometer Head Feed (0-25 mm) (excluding quantizing error): |
±3 µm
|
| Flatness of reference surface (base): |
2 µm
|
| Flatness of measuring face (rod): |
0.3 µm
|
| Parallelism between measuring face (rod) and reference surface (base): |
(4+L/50) µm L = max. measuring length (mm)
|
| Measuring surfaces: |
Hardened, precision ground, micro-lap finish
|
| Base: |
Hardened tool steel
|
| Battery life: |
approx. 2.4 years
|
| Delivered: |
Including box, key and 1 battery
|
| ZERO/ABS: |
Yes
|
| DATA/HOLD: |
Yes
|
| Lock function: |
Yes
|
| Auto Power OFF after 20 min. non use: |
Yes
|
| 2 x PRESET: |
Yes
|
| Low voltage alarm: |
Yes
|
| Data output: |
Yes
|
| Digital/Analog: |
Digital
|
| Inch-Metric: |
Inch/Metric
|
