Digital Disc Micrometer Inch/Metric, 0-1", Non-Rotatin

Stock Code: MIT369-350-30
£617.10 (exc VAT) Each Includes your 15% Disc

£740.52 (inc VAT)

Next Day Delivery
Quantity:
-
+

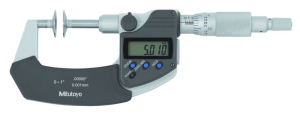

Mitutoyo 369-350-30 Digimatic Non-Rotating Spindle Disc Micrometer This Digimatic Disc Micrometer allows you to measure a range of different materials. It offers you the following benefits: Non-rotating spindle and disc-shaped measuring surfaces. Measuring the root tangent length of spur and helical gears Measurable range of gear pitch: 0,5-6 module. Suitable for measuring felt, rubber, cardboard, fabric etc.

Range:
0 - 1 inch
Accuracy:
±4 µm/0.0002"
Mass:
340 g
Measuring force:
3 - 8 N
Digital step:
0,001 mm
Scale:
Thimble and sleeve satin chrome finish, ø18 mm
Flatness:
1 µm/0.00004"
Parallelism:
4 µm/0.00016" for models up to 50 mm/2" 6 µm/0.00024" for models over 50 mm/2"
Measuring spindle:
ø6.35 mm, spindle pitch 0,5 mm, with spindle lock
Battery life:
approx. 2.4 years
Delivered:
Including box, setting standard (from 25 mm upward), key, 1 battery
ORIGIN:
Yes
ZERO/ABS:
Yes
Auto Power OFF after 20 min. non use:
Yes
Function lock:
Yes
Data output:
Yes
HOLD:
Yes
Digital/Analog:
Digital
Spindle pitch:
Spindle pitch 0,5 mm, with spindle lock
Measurable module:
0.5-6
Inch-Metric:
Inch/Metric
