Digital Sheet Metal Micrometer Inch/Metric, 0-1", Flat Anvil/

Stock Code: MIT389-351-30
£475.15 (exc VAT) Each Includes your 15% Disc

£570.18 (inc VAT)

Next Day Delivery
Quantity:
-
+

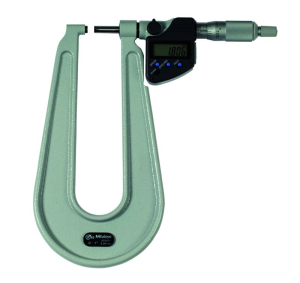

Mitutoyo 389-351-30 Digimatic Sheet Metal Micrometer This Digimatic Disc Micrometer allows you to measure a range of different materials. It offers you the following benefits: Non-rotating spindle and disc-shaped measuring surfaces. Measuring the root tangent length of spur and helical gears Measurable range of gear pitch: 0,5-6 module. Suitable for measuring felt, rubber, cardboard, fabric etc.

Range:
0 - 1 inch
Anvil/ Tip:
A
Accuracy:
±4 µm/0.0002"
IP65:
Yes
Mass:
840 g
Measuring force:
3 - 8 N
Digital step:
0,001 mm
Measuring force:
3-8, 10-14 (389-514) N
Scale:
Thimble and sleeve satin chrome finish, ø18 mm
Flatness:
0,6 µm/0.000024" for models with 150 mm/6" throat 1 µm/0.00004" for models with 300 mm/12" throat
Parallelism:
3 µm/0.00012"
Measuring surfaces:
Carbide tipped, micro-lap finish
Measuring spindle:
ø6,35 mm, spindle pitch 0,5 mm, with spindle lock
Battery life:
approx. 2.4 years, approx. 1.8 years (389-514)
Delivered:
Including box, key, 1 battery/ 2 batteries (389-514)
ORIGIN:
Yes
ZERO/ABS:
Yes
Auto Power OFF after 20 min. non use:
Yes
2 x PRESET:
Yes
Function lock:
Yes
Data output:
Yes
HOLD:
Yes
Digital/Analog:
Digital
Inch-Metric:
Inch/Metric
