Digimatic Spline mic.

Stock Code: MIT331-364
£543.98 (exc VAT) Each Includes your 15% Disc

£652.78 (inc VAT)

Next Day Delivery
Quantity:
-
+

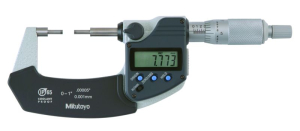

Mitutoyo 331-364 Digimatic Spline Micrometer This Digimatic Disc Micrometer allows you to measure a range of different materials. It offers you the following benefits: Non-rotating spindle and disc-shaped measuring surfaces. Measuring the root tangent length of spur and helical gears Measurable range of gear pitch: 0,5-6 module. Suitable for measuring felt, rubber, cardboard, fabric etc.

Range:
3 - 4 inch
Anvil/ Tip:
B
Accuracy:
±3 µm/0.00015"
Mass:
565 g
Measuring force:
5 - 10 N
Digital step:
0,001 mm
Scale:
Thimble and sleeve satin chrome finish, ø18 mm
Flatness:
0,3µm/0.000012"
Parallelism:
(2+L/100) µm, L = max. range (mm) [0.00008" + 0.00004 (L/4)]" L = max. range (inch)
Measuring surfaces:
Carbide tipped, micro-lap finish, stepped
Measuring spindle:
ø6,35 mm, Spindle pitch 0,5 mm, with spindle lock
Battery life:
approx 2.4 years
Delivered:
Including box, setting standard (from 25 mm upward), key, 1 battery
ORIGIN:
Yes
ZERO/ABS:
Yes
Auto Power OFF after 20 min. non use:
Yes
Function lock:
No
Data output:
Yes
HOLD:
Yes
Digital/Analog:
Digital
Inch-Metric:
Inch/Metric
