ABS Digital Thickness Gauge Inch/Metric, 0-0,4", 0,0005",

Stock Code: MIT547-316S
£391.00 (exc VAT) Each Includes your 15% Disc

£469.20 (inc VAT)

Next Day Delivery
Quantity:
-
+

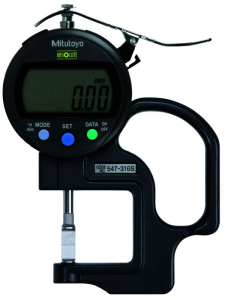

Mitutoyo 547-316S A Mitutoyo digital-indicator based instrument designed for quick and efficient measurement of small dimensions. The anvil and plunger are knife-shaped to enable contact with the bottom of grooves. The convenient grip handle, thumb trigger and spring-loaded plunger make the instrument easy to use.

Range:
0 - 0.4 inch
Digital step:
0.0005"/0,01 mm
Max. measuring depth:
30 mm
Type:
Blade steel contact point
Mass:
270 g
Accuracy:
±10 µm(excluding quantizing error)
Measuring force:
≤ 1,5 N
Scale:
Capacitance type ABSOLUTE linear encoder
Parallelism:
≤ 5
Max. response speed:
Unlimited
Contact point:
M 2,5 x 0,45 mm (ISO/JIS type)
Alarm:
Low voltage, counting value composition error, overflow error, tolerance limit setting error (ID-C only)
Power supply:
1 battery SR-44
Battery life:
approx. 7000 hours
ZERO/ABS:
Yes
GO/±NG judgement:
Yes
Digimatic data output:
Yes
ON/OFF:
Yes
DATA/HOLD:
Yes
Lock function:
Yes
PRESET:
Yes
Counting direction switchable:
Yes
Calculation function:
Yes
Inch-Metric:
Inch/Metric
Functions:
With indicator ID-C No. 543-402BS (ANSI/AGD type)
No detailed specifications are available for this product.
There are no downloads for this product.
There are no reviews for this product yet. Be the first to add one!
