Bore Gauge for Extra Small Hol 1,5-4mm, 0,01mm

Bore Gauge for Extra Small Hol 1,5-4mm, 0,01mm

Stock Code: MIT526-163-1
Next Day Delivery
£910.52 (exc VAT) EACH
£1,092.62 (inc VAT)
Includes your -15% Disc
Quantity: - +

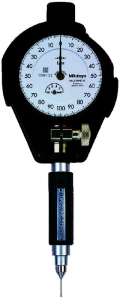

Mitutoyo 526-163-1 This is a two point split contact point ideally suited to smaller bore measurements. It offers you the following benefits: A precision bore gauge so you can make quick and accurate measurements of small hole diameters (0.95-18 mm). You can replace the analogue indicator fitted to this instrument with a customer-supplied Digimatic indicator if you need. The contact point is hard chrome finish

Range:
1.5 - 4 mm
Graduation:
0.01 mm
No. Dial Indicator:
2046SB
Measuring depth:
17,5-22,5 mm (1)
Number of anvils:
9
Accuracy:
4 µm 6 µm for range 10-18 mm
Repeatability:
2 µm
Delivered:
In box including plastic cover for Dial Indicator
Digital/Analog:
Analog
Inch-Metric:
Metric
