Bore Gauge for Extra Small Hol 0,06-0,157Inch, with Indicator 0,

Bore Gauge for Extra Small Hol 0,06-0,157", with Indicator 0,

Stock Code: MIT526-166
Next Day Delivery
£2,521.44 (exc VAT) EACH
£3,025.73 (inc VAT)
Includes your -15% Disc
Quantity: - +

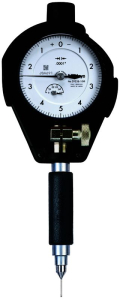

Mitutoyo 526-166 This is a two point split contact point ideally suited to smaller bore measurements. It offers you the following benefits: A precision bore gauge so you can make quick and accurate measurements of small hole diameters (0.95-18 mm). You can replace the analogue indicator fitted to this instrument with a customer-supplied Digimatic indicator if you need. The contact point is hard chrome finish

Range:
0.06 - 0.157 mm
Graduation:
0.01mm. 0.001mm
No. Dial Indicator:
2923SB-10
Measuring depth:
.68,68"
Number of anvils:
9
Accuracy:
4 µm 6 µm for range 10-18 mm
Graduation ":
0,0001"
Repeatability:
2 µm
Delivered:
In box including plastic cover for Dial Indicator
Inch-Metric:
Inch
