Bore Gauge for Extra Small Hol 0,95-1,55mm, 0,001mm
Stock Code: MIT526-172-1
£858.50 (exc VAT) Each Includes your 15% Disc
£1030.20 (inc VAT)
Next Day Delivery

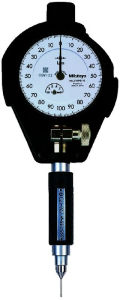

Mitutoyo 526-172-1 This is a two point split contact point ideally suited to smaller bore measurements. It offers you the following benefits: A precision bore gauge so you can make quick and accurate measurements of small hole diameters (0.95-18 mm). You can replace the analogue indicator fitted to this instrument with a customer-supplied Digimatic indicator if you need. The contact point is hard chrome finish
| Range: |
0.95 - 1.55 mm
|
| Graduation: |
0.001 mm
|
| No. Dial Indicator: |
2109SB-10
|
| Measuring depth: |
11,5 mm
|
| Number of anvils: |
5
|
| Accuracy: |
4 µm 6 µm for range 10-18 mm
|
| Repeatability: |
2 µm
|
| Delivered: |
In box including plastic cover for Dial Indicator
|
| Digital/Analog: |
Analog
|
| Inch-Metric: |
Metric
|
