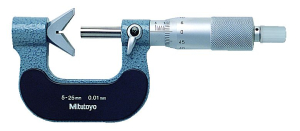

5 Flute V-Anvil Micrometer 5-25mm

5 Flute V-Anvil Micrometer 5-25mm

Stock Code: MIT114-165
Next Day Delivery
£333.57 (exc VAT) EACH
£400.28 (inc VAT)
Includes your -15% Disc
Quantity: - +

Mitutoyo 114-165 Five Flute V-Anvil Micrometer This Digimatic Disc Micrometer allows you to measure a range of different materials. It offers you the following benefits: Non-rotating spindle and disc-shaped measuring surfaces. Measuring the root tangent length of spur and helical gears Measurable range of gear pitch: 0,5-6 module. Suitable for measuring felt, rubber, cardboard, fabric etc.

Range:
5 - 25 mm
Remarks:
-
Accuracy:
±4 µm
Setting standard:
167-327 ø 5 mm
Mass:
255 g
Measuring force:
5 - 10 N
Graduation:
0.01 mm
Flatness:
0,6 µm (spindle) 1,3 µm (anvil)
Measuring surfaces:
Prism angle 60°/108°
Measuring spindle:
With spindle lock, ø6,35 mm, spindle pitch 0,75 mm
Delivered:
Including box, setting standard, key
Digital/Analog:
Analog
Inch-Metric:
Metric
Functions:
For 5-flute cutting tools (108°)
