ABS High Accuracy Digital Micr Inch/Metric, 0-1Inch, 0,000005Inch

ABS High Accuracy Digital Micr Inch/Metric, 0-1", 0,000005"

Stock Code: MIT293-130
Next Day Delivery
£1,540.88 (exc VAT) EACH
£1,849.06 (inc VAT)
Includes your -15% Disc
Quantity: - +

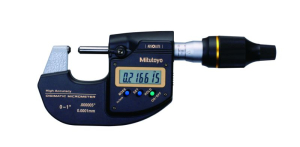

Mitutoyo 293-130 This Micrometer enables 0.1?m resolution measurements and is ideal for customers who need to make highly accurate measurements with a hand-held tool (such as Gauge R & R analysis). The Absolute High-Accuracy Micrometer offers the following benefits: It delivers higher accuracy without sacrificing operability, by using Mitutoyo‘s innovative 0.1 ?m resolution ABS (absolute) rotary sensor and high accuracy screw machining technology which reduces instrumental error to just 0.5 ?m. Its highly rigid frame and high-performance constant-force mechanism (7-9N) enable more stable measurement.

Type Standard
Range 0-25mm / 0-1"
Display Type Digital
Resolution 0.0001mm / 0.0005mm / .000005" / .00002"
Accuracy ±0.5 µm / ±.00002"
Data Output Yes
Measuring Force 7 to 9mN
Measuring Units Millimetre / Inch
Spindle End ø3.2mm

No detailed specifications are available for this product.

There are no downloads for this product.

There are no reviews for this product yet. Be the first to add one!
