Digital Indicator ID-H, BS AC- Inch/Metric, 1,2", 0,00002", A
Stock Code: MIT543-562E
£636.65 (exc VAT) Each Includes your 15% Disc
£763.98 (inc VAT)
Next Day Delivery

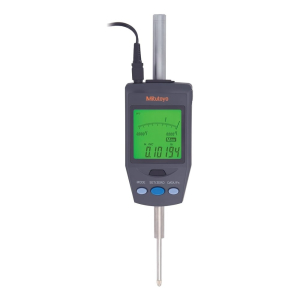

Mitutoyo 543-562E A Mitutoyo back-lit screen type digital indicator, mains-powered. Extensive functionality includes an analogue bar scale, switchable extra-high resolution, colour-coded tolerance judgement, Max/Min data hold, Runout measurement and function lock. Digimatic data output.
| Accuracy: |
Refer to the list of specifications(excluding quantizing error)
|
| Scale: |
Photoelectric linear encoder
|
| Max. response speed: |
1000 mm/s
|
| Stem Ø: |
8 mm
|
| Contact point: |
Carbide ball, thread M 2.5 x 0.45 mm
|
| Alarm: |
Counting value composition error, overflow error, tolerance setting error
|
| Power supply: |
AC adapter 6 V DC, 2A
|
| Display: |
LCD, character height: 9,5 mm
|
| ZERO: |
Yes
|
| GO/±NG judgement: |
Yes
|
| Digimatic data output: |
Yes
|
| Digimatic data input: |
Yes
|
| ON/OFF: |
Yes
|
| DATA/HOLD: |
Yes
|
| RS-232C Output*: |
Yes
|
| Analogue measuring range switchable: |
Yes
|
| Max/Min/Runout value: |
Yes
|
| RS-232C Input*: |
Yes
|
| Lock function: |
Yes
|
| PRESET: |
Yes
|
| Counting direction switchable: |
Yes
|
| Selectable resolution: |
Yes
|
| Digital/Analog: |
Digital
|
| Inch-Metric: |
Inch/Metric
|
