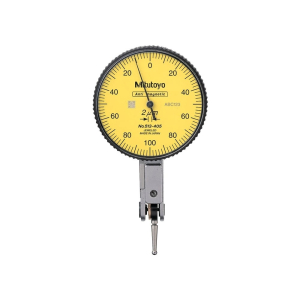

Dial Test Indicator, Horizonta 0,2mm, 0,002mm, 8mm Stem

Stock Code: MIT513-405E
£103.70 (exc VAT) Each Includes your 15% Disc

£124.44 (inc VAT)

Next Day Delivery
Quantity:
-
+

Mitutoyo 513-405E Drastically enhanced durability, sensitivity and visibility. Glare-free flat crystal face allows easy reading of graduations. Preventing dust and oil from penetrating to the dial face. The O-ring seal on the bezel has the effect of providing smooth rotation and prevents dust and oil from penetrating through to the dial face. Multi-layer coatings on the Crystal. Hard and non-glare coatings on the crystal inhibit scratches, contamination and glare on the surface. Jewelled bearings and precision gears and pinions give you smooth, accurate movement and quick response.

Range:
0.2 mm
Graduation:
0.002 mm
Scale:
0-100-0
fe:
3 µm
fu:
2 µm
fges:
4 µm
Measuring force:
≤ 0,3 N
Carbide stylus tip ø2 mm No.:
103010
Mass:
42 g
Contact point:
Thread M 1,7 x 0,35
Delivered:
In box with clamping shaft ø8 mm
Jeweled bearing:
Yes
Anti-magnet:
Yes
Inch-Metric:
Metric
Functions:
Basic set
