Digital Indicator ID-C Inch/Metric, 0,5", 0,0005", Fl

Stock Code: MIT543-401B
£230.35 (exc VAT) Each Includes your 15% Disc

£276.42 (inc VAT)

Next Day Delivery
Quantity:
-
+

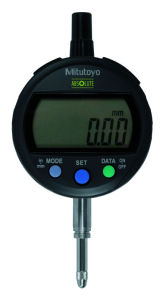

Mitutoyo 543-401B A Mitutoyo digital indicator of similar size to a Series 2 type dial indicator. ABSOLUTE System scale for error free, high-speed measurement. Functionality includes displaying the result of an internal calculation based on spindle displacement, according to a single-term user-defined formula (Ax), and tolerance judgement. SPC data output.

No. Lug back plate:
543-401
Range:
0.5 inch
Digital step:
0,01 mm/0.0005"
Accuracy:
0,02 mm/ 0.001"
Measuring force:
≤ 0,9 N
Mass:
170 g
Accuracy:
Refer to the list of specifications (excluding quantizing error)
Scale:
Capacitance type, ABSOLUTE linear encoder
Max. response speed:
Unlimited
Stem Ø:
8 mm
Contact point:
Carbide ball, thread M 2.5 x 0.45 mm
Alarm:
Low voltage, counting value composition error, overflow error, tolerance limit setting error
Power supply:
1 battery SR-44
Battery life:
approx. 7000 hours
Display:
LCD character height 11 mm Rotatable 330°
ZERO/ABS:
Yes
GO/±NG judgement:
Yes
Digimatic data output:
Yes
ON/OFF:
Yes
Lock function:
Yes
PRESET:
Yes
Counting direction switchable:
Yes
Calculation function:
Yes
Selectable resolution*:
Yes
Inch-Metric:
Inch/Metric
