Digital Indicator ID-B, IP66, Inch/Metric, 0,2", 0,00005"

Stock Code: MIT543-586
£304.30 (exc VAT) Each Includes your 15% Disc

£365.16 (inc VAT)

Next Day Delivery
Quantity:
-
+

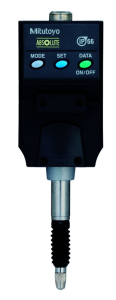

Mitutoyo 543-586 A Mitutoyo slim-style dustproof and waterproof digital indicator suitable for use in the presence of coolant or cutting oil. ABSOLUTE System scale for error free, high-speed measurement. Functionality includes switchable resolution, tolerance judgement, data hold and readout rotation. SPC data output

Range:
0.2 inch
Digital step:
0.00005"/0.0005"/0,001 mm/0,01 mm
Accuracy:
0,01 mm/0,003 mm; 0.0004"/0.00012"
Measuring force:
≤ 2,0 N
Mass:
130 g
Accuracy:
Refer to the list of specifications
Scale:
Capacitance type, ABSOLUTE linear encoder
Max. response speed:
Unlimited
Alarm:
Low voltage, counting value composition error, overflow error, tolerance limit setting error
Power supply:
1 battery SR-44
Battery life:
approx. 7000 hours
Display:
LCD, character height: 6,2 mm
Stem Ø:
9,52 mm
Contact point:
Carbide ball, thread 4.0-48.0 UNF
GO/±NG judgement:
Yes
Digimatic data output:
Yes
ON/OFF:
Yes
DATA/HOLD:
Yes
External PRESET/ZERO:
Yes
PRESET:
Yes
Counting direction switchable:
Yes
Selectable resolution*:
Yes
Digital/Analog:
Digital
Inch-Metric:
Inch/Metric
Functions:
ANSI/AGD type
