Gear Tooth Micrometer 250-275mm

Gear Tooth Micrometer 250-275mm

Stock Code: MIT124-183
Next Day Delivery
£595.34 (exc VAT) EACH
£714.41 (inc VAT)
Includes your -15% Disc
Quantity: - +

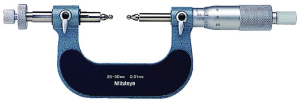

Mitutoyo 124-183 This Interchangeable anvil gear tooth micrometer are intended for making over-pin diameter measurements on gears using precision ball anvils/spindle tips. Interchangeable steel (or carbide) ball anvil/spindle tips for various gear modules (0.5-5.25) are optional. Equipped with ratchet stop for constant measuring force.

Range:
250 - 275 mm
Accuracy:
±7 µm
Mass:
1620 g
Measuring force:
5 - 10 N
Digital step:
0,001 mm / 0,001 mm/0.00005" (digimatic model)
Graduation:
0,01 mm
Scale:
Thimble and sleeve satin chrome finish, ø18 mm
Measuring spindle:
ø6,35 mm
Delivered:
Including box, setting standard (from 25 mm upward), key, interchangeable anvils/spindle tips not included
Digital/Analog:
Analog
Inch-Metric:
Metric
Functions:
Analog model
