Outside Micrometer Interchange 900-1000mm

Stock Code: MIT104-148A
£1309.00 (exc VAT) Each Includes your 15% Disc

£1570.80 (inc VAT)

Next Day Delivery
Quantity:
-
+

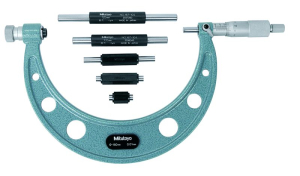

Mitutoyo 104-148A This Outside Micrometer offers you an extra wide measuring range, and has the following benefits: Easy, interchangeable anvils allow a wide range of measurements. Ratchet stop for consistent measurements.

Range:
900 - 1000 mm
Interchangeable anvils:
4
Setting standard:
4
Mass:
11.78 kg
Graduation:
0.01 mm
Scale:
Thimble and sleeve satin chrome finish ø 18 mm (up to 300 mm) ø 21 mm (over 300 mm)
Flatness:
0,6 µm/0.000024" for models up to 300 mm/12" 1 µm/0.00004" for models over 300 mm/12"
Parallelism:
2 µm/0.00008" for models up to 75 mm/3” 3 μm/0.00012” for models up to 150 mm/6” (2+L/100) μm for models over 150 mm L = max. range (mm) ±[0.00008”+0.00004(L/4)]” for models over 6” L = max. range (inch)
Measuring surfaces:
 hardened, precision ground, micro-lap finish
Measuring spindle:
 Ø 8 mm, Spindle pitch 0,5 mm with spindle lock
Measuring force:
5-10 N, 10-14 N (over 300 mm)
Delivered:
Including box, gauge block, inserts, key
Digital/Analog:
Analog
Inch-Metric:
Metric
