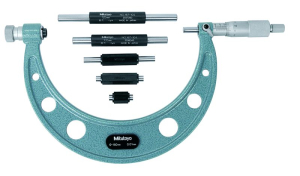

Outside Micrometer Interchange 20-24"

Stock Code: MIT104-154
£773.50 (exc VAT) Each Includes your 15% Disc

£928.20 (inc VAT)

Next Day Delivery
Quantity:
-
+

Mitutoyo 104-154 This Outside Micrometer offers you an extra wide measuring range, and has the following benefits: Easy, interchangeable anvils allow a wide range of measurements. Ratchet stop for consistent measurements.

Range:
20 - 24 inch
Interchangeable anvils:
4
Mass:
6.35 kg
Graduation:
0.01 mm
Flatness:
0,6 µm/0.000024" for models up to 300 mm/12" 1 µm/0.00004" for models over 300 mm/12"
Parallelism:
2 µm/0.00008" for models up to 75 mm/3” 3 μm/0.00012” for models up to 150 mm/6” (2+L/100) μm for models over 150 mm L = max. range (mm) ±[0.00008”+0.00004(L/4)]” for models over 6” L = max. range (inch)
Measuring surfaces:
Hardened, lapped (anvil), carbide tipped, lapped (spindle side)
Measuring spindle:
With spindle lock, ø 6,35 mm (up to 300 mm) ø8 mm (over 300 mm), spindle pitch 0,5 mm
Measuring force:
5-10 N (10-14 N for measuring range of 300 mm and more)
Delivered:
Including box, gauge block, inserts, key
Digital/Analog:
Analog
Inch-Metric:
Inch
