Outside Micrometer Interchange 30-36Inch

Outside Micrometer Interchange 30-36"

Stock Code: MIT104-204
Next Day Delivery
£1,129.40 (exc VAT) EACH
£1,355.28 (inc VAT)
Includes your -15% Disc
Quantity: - +

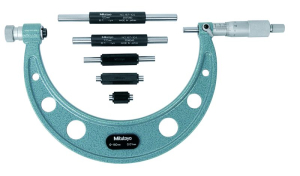

Mitutoyo 104-204 This Outside Micrometer offers you an extra wide measuring range, and has the following benefits: Easy, interchangeable anvils allow a wide range of measurements. Ratchet stop for consistent measurements.

Range:
30 - 36 inch
Interchangeable anvils:
6
Mass:
11.88 kg
Graduation:
0.01 mm
Scale:
Thimble and sleeve satin chrome finish ø 18 mm (up to 300 mm) ø 21 mm (over 300 mm)
Flatness:
0,6 µm/0.000024" for models up to 300 mm/12" 1 µm/0.00004" for models over 300 mm/12"
Parallelism:
2 µm/0.00008" for models up to 75 mm/3” 3 μm/0.00012” for models up to 150 mm/6” (2+L/100) μm for models over 150 mm L = max. range (mm) ±[0.00008”+0.00004(L/4)]” for models over 6” L = max. range (inch)
Measuring surfaces:
Hardened, lapped (Anvil), carbide tipped, lapped (Spindle side)
Measuring spindle:
ø 6,35 mm (up to 300 mm) ø 8 mm (over 300 mm) Spindle pitch 0,5 mm with spindle lock
Measuring force:
5-10 N (10-14 N for measuring range of 300 mm and more)
Delivered:
Including box, gauge block, inserts, key
Digital/Analog:
Analog
Inch-Metric:
Inch
