Digital Micrometer Interchange Inch/Metric,18-24", incl. 6 An

Stock Code: MIT340-721
£1241.00 (exc VAT) Each Includes your 15% Disc

£1489.20 (inc VAT)

Next Day Delivery
Quantity:
-
+

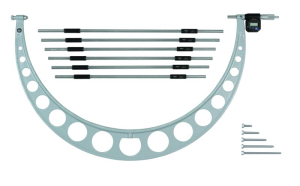

Mitutoyo 340-721 This Digimatic Micrometer offers you an extra wide measuring range, and has the following benefits: Easy, interchangeable anvils allow a wide range of measurements. Ratchet stop for constant force.

Range:
18 - 24 inch
Interchangeable anvils:
6
Mass:
5.7 kg
Digital step:
0.0001"/0,001 mm
Scale:
thimble and sleeve satin chrome finish ø 18 mm (up to 300 mm), ø 21 mm (over 300 mm)
Flatness:
0,6 µm, 1 µm (over 300 mm)
Parallelism:
2µm/0.00008" for models up to 75mm/3”, 3μm/.00012” for models up to 150mm/6”, (2+R/100)μm for models over 150mm, R = max. range (mm) ±[.00008”+.00004(R/4)]” For models over 6” R = max. range (inch)
Measuring surfaces:
hardened, lapped (Anvil), carbide tipped, lapped (Spindle side)
Measuring spindle:
ø 6,35 mm (up to 300 mm), ø 8 mm (over 300 mm), spindle pitch 0,5 mm, with spindle lock
Battery life:
approx. 2.4 years, approx. 1.8 years (over 300 mm)
Measuring force:
5-10 N, 10-14 N (over 300 mm)
Delivered:
including box, gauge block, inserts, key, 1 battery
ZERO/ABS:
Yes
ON:
Yes
Auto Power OFF after 20 min. non use:
Yes
2 x PRESET:
Yes
Function lock:
Yes
Data output:
Yes
HOLD:
Yes
Digital/Analog:
Digital
Inch-Metric:
Inch/Metric
