Universal Micrometer Interchangeable Avil/Spindle,

Universal Micrometer Interchangeable Avil/Spindle,

Stock Code: MIT116-102
Next Day Delivery
£349.32 (exc VAT) EACH
£419.18 (inc VAT)
Includes your -15% Disc
Quantity: - +

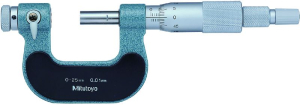

Mitutoyo 116-102 This Universal Micrometer comes with interchangeable tips. It offers you the following benefits: Its non-rotating spindle accepts seven forms of optional interchangeable anvil/spindle tip (including flat, spline, spherical, point, knife-edge, disc, and blade) allowing you to use it in a wide range of applications. Optional anvils/spindle-tips for screw thread measurement (matching V and cone) are also available.

Range:
25 - 50 mm
Accuracy:
±4 µm
Mass:
300 g
Measuring force:
5 - 10 N
Graduation:
0.01mm
Measuring spindle:
Ø 8 mm, spindle pitch 0.5 mm
Delivered:
Including box, plain and 60° thread setting standard (from 25 mm upward), key Interchangeable anvils/spindle-tips not included
Digital/Analog:
Analog
Spindle feed error:
3 µm
Inch-Metric:
Metric
