Depth Micrometer, Interchangea 0-150mm, 101mm Base

Stock Code: MIT129-116
£227.80 (exc VAT) Each Includes your 15% Disc

£273.36 (inc VAT)

Next Day Delivery
Quantity:
-
+

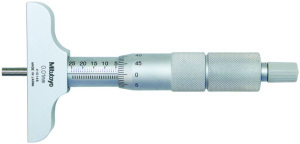

Mitutoyo 129-116 This interchangeable rod type micrometer can be used for wide range measurements. It offers you the following benefits: ø4mm interchangeable rods, with lapped measuring surfaces, enable you to make wide-range measurement. The ratchet stop provides constant measuring force. Measuring rod lock.

Range:
0 - 150 mm
Number of rods:
6
Mass:
410 g
Measuring force:
5 - 10 N
Measuring span:
25 mm
Spindle pitch:
0,5 mm, with spindle lock
Micrometer Head Feed (0-25 mm):
±3 µm
Zero point errors of rods:
±4 µm (0-150 mm)±6 µm (0-300 mm)
Flatness of reference surface (base):
1,3 µm for 63,5 mm2 µm for 101,6 mm
Flatness of measuring face (rod):
0.3 µm
Parallelism between measuring face (rod) and reference surface (base):
(4+ L/50) µm L=max. measuring length (mm)
Measuring surfaces:
Hardened, precision ground, micro-lap finish
Base:
Hardened tool steel
Graduation:
0.01 mm
Scale:
Thimble and sleeve satin chrome finish ø18 mm
Delivered:
Including box and key
Digital/Analog:
Analog
Inch-Metric:
Metric
Functions:
Base 101,6 x 16 mm
