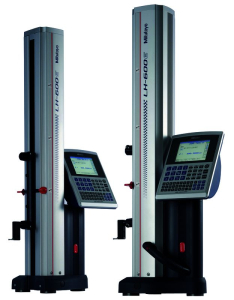

Linear Height LH-600E BS Type, 0-600mm, with Grip
Stock Code: MIT518-352E-21
£5990.00 (exc VAT) Each
£7188.00 (inc VAT)
Next Day Delivery
Mitutoyo 518-352E-21 This is a high performance 2D measurement system. The Linear Height Gauge LH-600E/EG offers you a huge range of features, including: Excellent accuracy. Pneumatic drive mechanism. Self-explanatory control pad with menu control in display. Easy-to-read LCD display. Automatic running of pre-learnt part programs. GO/± NG display at each measurement. Mains-independent operation with rechargeable battery. Easy handling with low weight. RS-232C data output port. USB Data output (for storing data only). DIGIMATIC data input for when using a digital indicator (e.g. when testing perpendicularity). Statistic processing.
| Range: |
0 - 972 mm
|
| Remarks: |
Power grip pre-installed
|
| Mass: |
24 kg
|
| Accuracy: |
(1,1 + 0,6L/600) µm L = length (mm)
|
| Slider stroke: |
600 mm
|
| Measuring force: |
1 N
|
| Perpendicularity: |
5 µm (after compensation)
|
| Straightness: |
4 µm (mechanical)
|
| Language for display: |
English/German/French/Spanish/Italian/Dutch//Portuguese/Swedish/Turkish/Czech/Hungarian/Slovenian/Polish/Traditional Chinese (optional)/Japanese
|
| Drive method: |
Manual/motor (5-40 mm/s, 7 steps)
|
| Suspension method: |
Full/semi-floating with built-in air compressor
|
| Balancing method: |
Counter balance
|
| Number of stored programs: |
50 programs (max.)
|
| Number of stored data: |
60000 (max.)
|
| Battery operation time: |
approx. 5 hours
|
| Probes: |
See specific chapter on Probes
|
| Display: |
Graphic LCD 320x240 dots (with back light)
|
