Disc Micrometer, Non-Rotating 75-100mm, Disk=20mm

Stock Code: MIT169-207
£279.65 (exc VAT) Each Includes your 15% Disc

£335.58 (inc VAT)

Next Day Delivery
Quantity:
-
+

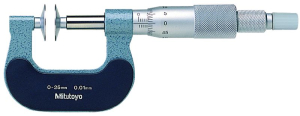

Mitutoyo 169-207 Non-Rotating Spindle Disc Micrometer This Digimatic Disc Micrometer allows you to measure a range of different materials. It offers you the following benefits: Non-rotating spindle and disc-shaped measuring surfaces. Measuring the root tangent length of spur and helical gears Measurable range of gear pitch: 0,5-6 module. Suitable for measuring felt, rubber, cardboard, fabric etc.

Range:
75 - 100 mm
Accuracy:
±6 µm
Mass:
400 g
Graduation:
0,01mm
Flatness:
1 µm
Parallelism:
4 µm/0.00016 for models up to 50 mm/2" 6 µm/0.00024" for models over 50 mm/2"
Measuring spindle:
ø 8 mm, spindle pitch 0.5 mm
Measuring force:
8.02 N ± 0,8 N (169-101), 5 - 10 N
Delivered:
Including box, key
Digital/Analog:
Analog
Inch-Metric:
Metric
