Digital Indicator Signal ID-C Inch/Metric, 0,5", 0,00005", F
Stock Code: MIT543-281B
£473.45 (exc VAT) Each Includes your 15% Disc
£568.14 (inc VAT)
Next Day Delivery

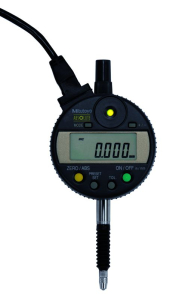

Mitutoyo 543-281B This is an externally-powered Digimatic Indicator with a N-ch open drain –NG, OK, +NG output. Dust-protected and protected against splashing water, complying with IEC 60529 (equivalent to IP54) Measures MAX/MIN/RANGE (run-out value). Saves three different Preset and Tolerance settings. Fast measurement frequency mode (detection cycle 50times/s) for reliable measurement in the peak detection mode (MAX/MIN/RANGE). Calculation function Ax. Coefficient A freely definable, x = displacement of the plunger. Analogue bar graph in the display (12 different scales switchable) GO/±NG tolerance judgment function
| No. Lug back plate: |
543-281
|
| Range: |
0.5 inch
|
| Digital step: |
0.00005"/0,001 mm
|
| Accuracy: |
0.00012"/0,003 mm
|
| Mass: |
335 g
|
| Accuracy: |
Refer to the list of specifications (excluding quantizing error)
|
| Measuring force: |
≤ 2,5 N
|
| Scale: |
Capacitance type, ABSOLUTE linear encoder
|
| Max. response speed: |
Unlimited
|
| Stem Ø: |
8 mm
|
| Measurement frequency: |
100 times/s(If the plunger speed >0,1 mm/s the peak value could not be displayed correctly.)
|
| Contact point: |
Carbide ball, thread M 2.4 x 0.45 mm
|
| Alarm: |
Counting value composition error, overflow error, tolerance limit setting error
|
| Power supply: |
DC 5 - 24V
|
| Display: |
LCD, character height 8 mm
|
| Delivered: |
With signal cable 4 m. One end is fixed to the main unit. no connector is supplied for the other end.
|
| Signal output: (+NG, OK, -NG): |
Yes
|
| Signal input: No-voltage input, (PRESET_RECALL/ZERO, HOLD_RESET): |
Yes
|
| PRESET (x3): |
Yes
|
| ZERO/ABS: |
Yes
|
| GO/±NG judgement: |
Yes
|
| ON/OFF: |
Yes
|
| Analogue measuring range switchable: |
Yes
|
| GO/±NG judgement via LED: |
Yes
|
| Function lock: |
Yes
|
| Counting direction switchable: |
Yes
|
| Calculation function: |
Yes
|
| GO/±NG judgement on LCD: |
Yes
|
| MAX/MIN/RANGE: |
Yes
|
| Inch-Metric: |
Inch/Metric
|
