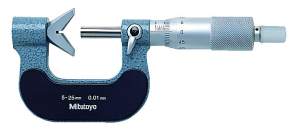

3 Flute V-Anvil Micrometer 10-25mm

3 Flute V-Anvil Micrometer 10-25mm

Stock Code: MIT114-102
Next Day Delivery
£331.81 (exc VAT) EACH
£398.17 (inc VAT)
Includes your -15% Disc
Quantity: - +

Mitutoyo 114-102 Three Flute V-Anvil Micrometer This Digimatic Disc Micrometer allows you to measure a range of different materials. It offers you the following benefits: Non-rotating spindle and disc-shaped measuring surfaces. Measuring the root tangent length of spur and helical gears Measurable range of gear pitch: 0,5-6 module. Suitable for measuring felt, rubber, cardboard, fabric etc.

Range:
10 - 25 mm
Remarks:
with groove
Accuracy:
±4 µm
Setting standard:
167-328 ø 10 mm
Mass:
280 g
Measuring force:
5 - 10 N
Graduation:
0.01 mm
Flatness:
0,6 µm (spindle) 1,3 µm (anvil)
Measuring surfaces:
Prism angle 60°/108°
Measuring spindle:
With spindle lock, ø6,35 mm, spindle pitch 0,75 mm
Delivered:
Including box, setting standard, key
Digital/Analog:
Analog
Inch-Metric:
Metric
Functions:
For 3-flute cutting tools (60°)
