Interchangeable Anvil Micromet 0-1"
Stock Code: MIT117-107
£167.45 (exc VAT) Each Includes your 15% Disc
£200.94 (inc VAT)
Next Day Delivery

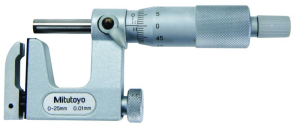

Mitutoyo 117-107 This Micrometer Interchangeable Anvil Type lets you measure a range of different features.It offers the following benefits: It is designed to accept interchangeable anvils shaped for specific tasks. You can use it to measure the wall thickness of tubes, as well as openings and slots from edge to edge, and features in hard-to-reach locations.
| Range: |
0 - 1 inch
|
| Accuracy: |
±0.0002"
|
| Anvils included: |
201217, 201216
|
| Mass: |
255 g
|
| Measuring force: |
5 - 10 N
|
| Graduation: |
0.01 mm
|
| Flatness: |
0,6 μm (spindle) 2 μm (anvil)
|
| Parallelism: |
3 μm
|
| Measuring surfaces: |
Carbide tipped (spindle)
|
| Measuring spindle: |
With spindle lock, Ø 6,35 mm, spindle pitch 0,5 mm
|
| Delivered: |
Including box, setting standard (from 25 mm upward), key, anvils
|
| Digital/Analog: |
Analog
|
| Inch-Metric: |
Inch
|
No detailed specifications are available for this product.
There are no downloads for this product.
There are no reviews for this product yet. Be the first to add one!
