Digital Interchangeable Anvil Inch/Metric, 0-1", IP65

Stock Code: MIT317-351-30
£444.55 (exc VAT) Each Includes your 15% Disc

£533.46 (inc VAT)

Next Day Delivery
Quantity:
-
+

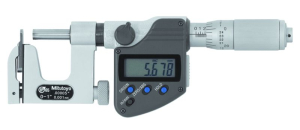

Mitutoyo 317-351-30 This Digimatic Micrometer Interchangeable Anvil Type lets you measure a range of different features. It offers the following benefits: It is designed to accept interchangeable anvils shaped for specific tasks. You can use it to measure the wall thickness of tubes, as well as openings and slots from edge to edge, and features in hard-to-reach locations.

Range:
0 - 1 inch
Graduation:
0.01mm
Accuracy:
±4 µm/0.0002"
Anvils included:
201217, 201216
Mass:
340 g
Measuring force:
5 - 10 N
Digital step:
0,001 mm
Scale:
Thimble and sleeve satin chrome finish, ø18 mm
Flatness:
0,6 μm (spindle) 2 μm (anvil)
Parallelism:
3 μm
Measuring surfaces:
Carbide tipped (spindle)
Measuring spindle:
With spindle lock, ø6,35 mm, spindle pitch 0,5 mm
Battery life:
approx. 2.4 years
Delivered:
Including box, setting standard (from 25 mm upward), key, 1 battery, anvils
ORIGIN:
Yes
ZERO/ABS:
Yes
Auto Power OFF after 20 min. non use:
Yes
Function lock:
Yes
Data output:
Yes
HOLD:
Yes
Digital/Analog:
Digital
Inch-Metric:
Inch/Metric
